Cardano Relay Configuration

Let's create a simple configuration for your core/relay node (for core node you will need to register keys/certificates which we will touch later)

Let's start by creating a folder structure for our nodes:

cd
mkdir -p cnode
cd cnode
mkdir -p config db sockets keys logs scripts
cd config

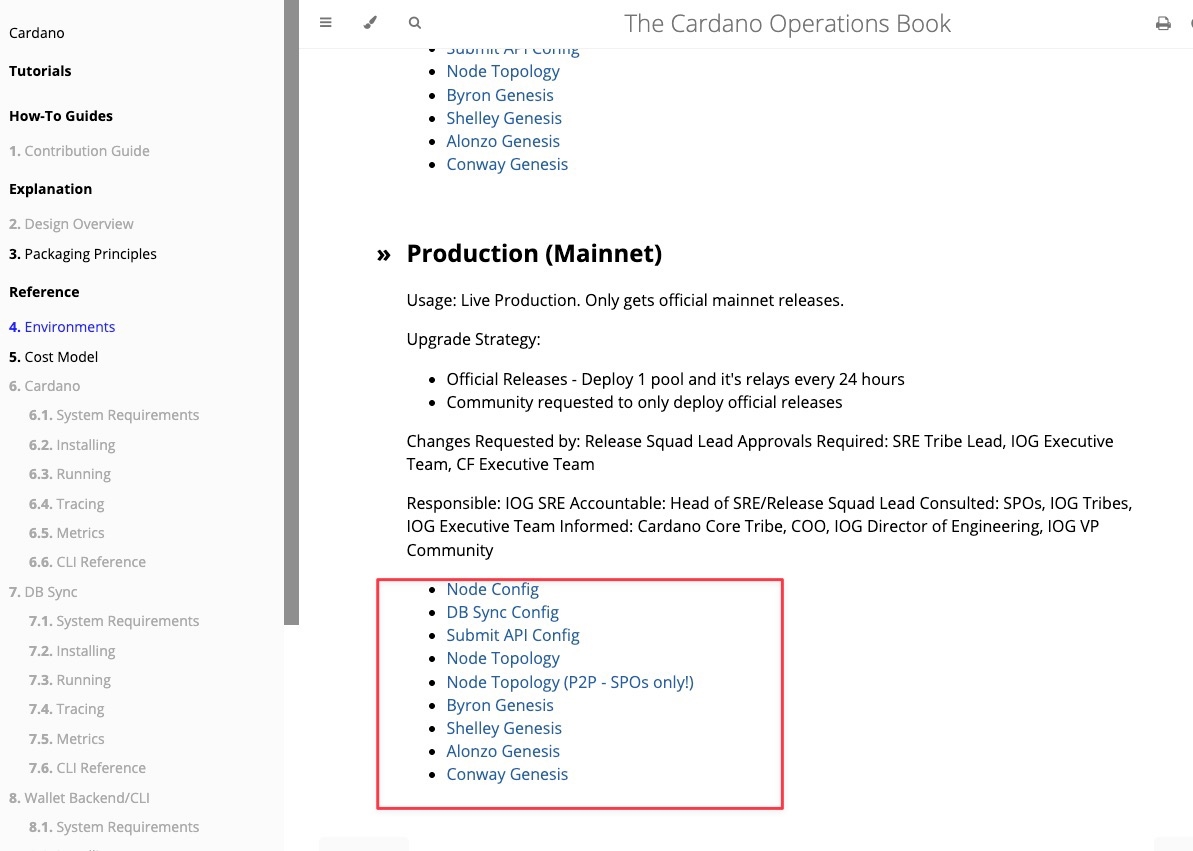

We will download the latest default configuration and genesis files from here:

https://book.world.dev.cardano.org/environments.html#production-mainnet

Let's download them from our server's console:

Mainnet

#downloading configuration files
curl -o config.json https://book.world.dev.cardano.org/environments/mainnet/config.json
curl -o topology.json  https://book.world.dev.cardano.org/environments/mainnet/topology.json
curl -o byron-genesis.json https://book.world.dev.cardano.org/environments/mainnet/byron-genesis.json
curl -o shelley-genesis.json https://book.world.dev.cardano.org/environments/mainnet/shelley-genesis.json
curl -o alonzo-genesis.json https://book.world.dev.cardano.org/environments/mainnet/alonzo-genesis.json
curl -o conway-genesis.json https://book.world.dev.cardano.org/environments/mainnet/conway-genesis.json

#list downloaded files
ls -al *

Testnet (pre-prod)

#downloading configs
wget -q -O config.json https://book.world.dev.cardano.org/environments/preprod/config.json
wget -q -O alonzo-genesis.json https://book.world.dev.cardano.org/environments/preprod/alonzo-genesis.json
wget -q -O byron-genesis.json https://book.world.dev.cardano.org/environments/preprod/byron-genesis.json
wget -q -O shelley-genesis.json https://book.world.dev.cardano.org/environments/preprod/shelley-genesis.json
wget -q -O topology.json https://book.world.dev.cardano.org/environments/preprod/topology.json
wget -q -O conway-genesis.json https://book.world.dev.cardano.org/environments/preprod/conway-genesis.json
#list downloaded files
ls -al

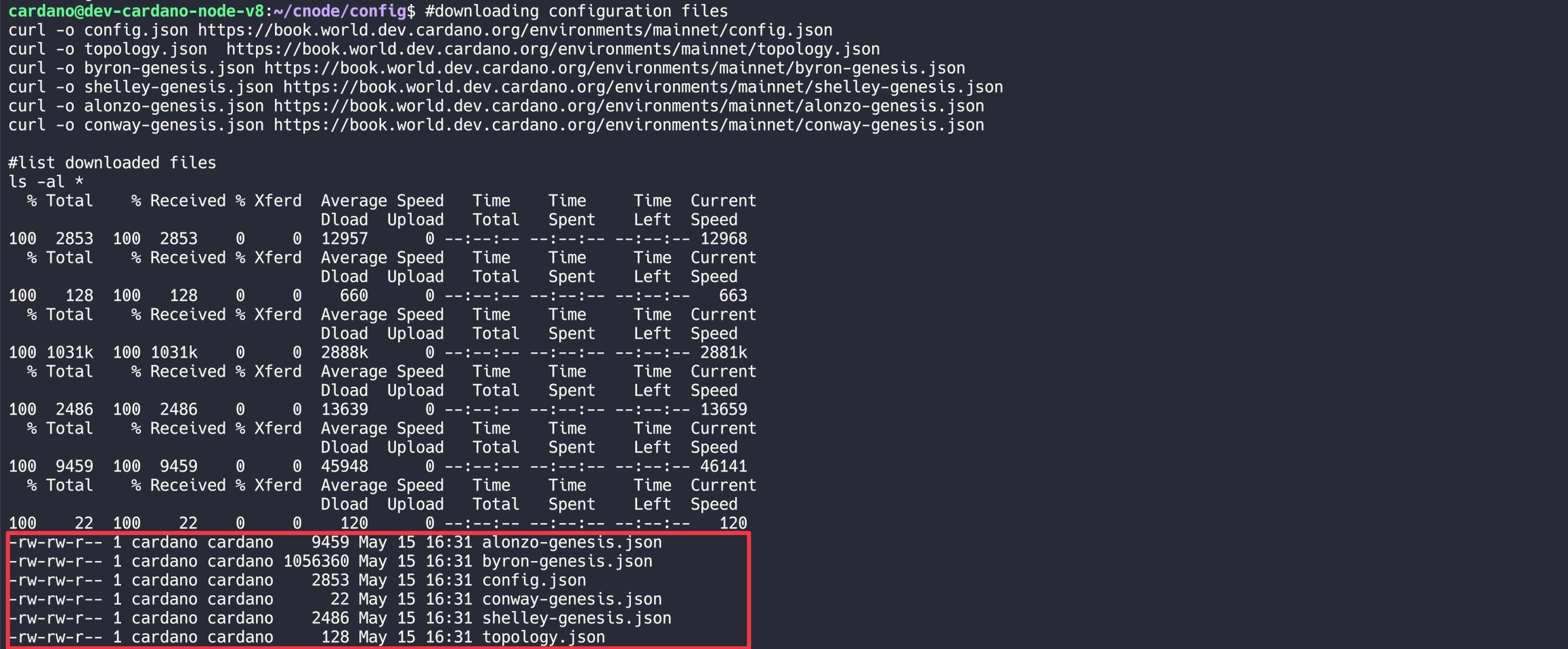

you should now have 6 files in the config folder:

We are almost done - I know that you are eager to test what we have done so far :) So let's test and run our Node on port 3000

Let's start with the core node:

cardano-node run --database-path /home/cardano/cnode/db --socket-path /home/cardano/cnode/sockets/node.socket --port 3000 --config /home/cardano/cnode/config/mainnet-config.json  --topology /home/cardano/cnode/config/mainnet-topology.json

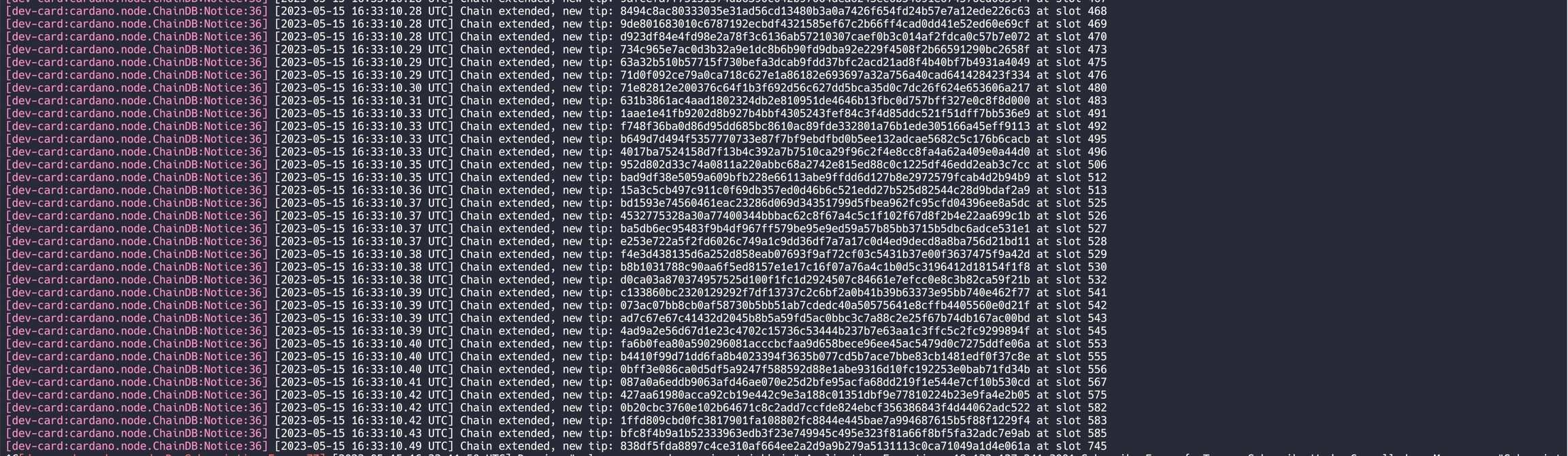

If you followed the guide, you should see this:

great! The node is syncing! You can now exit this by pressing ctrl+c and continuing to the next chapter!
